PE 100 · IS 4984 · ISO 4427 · EN 12201

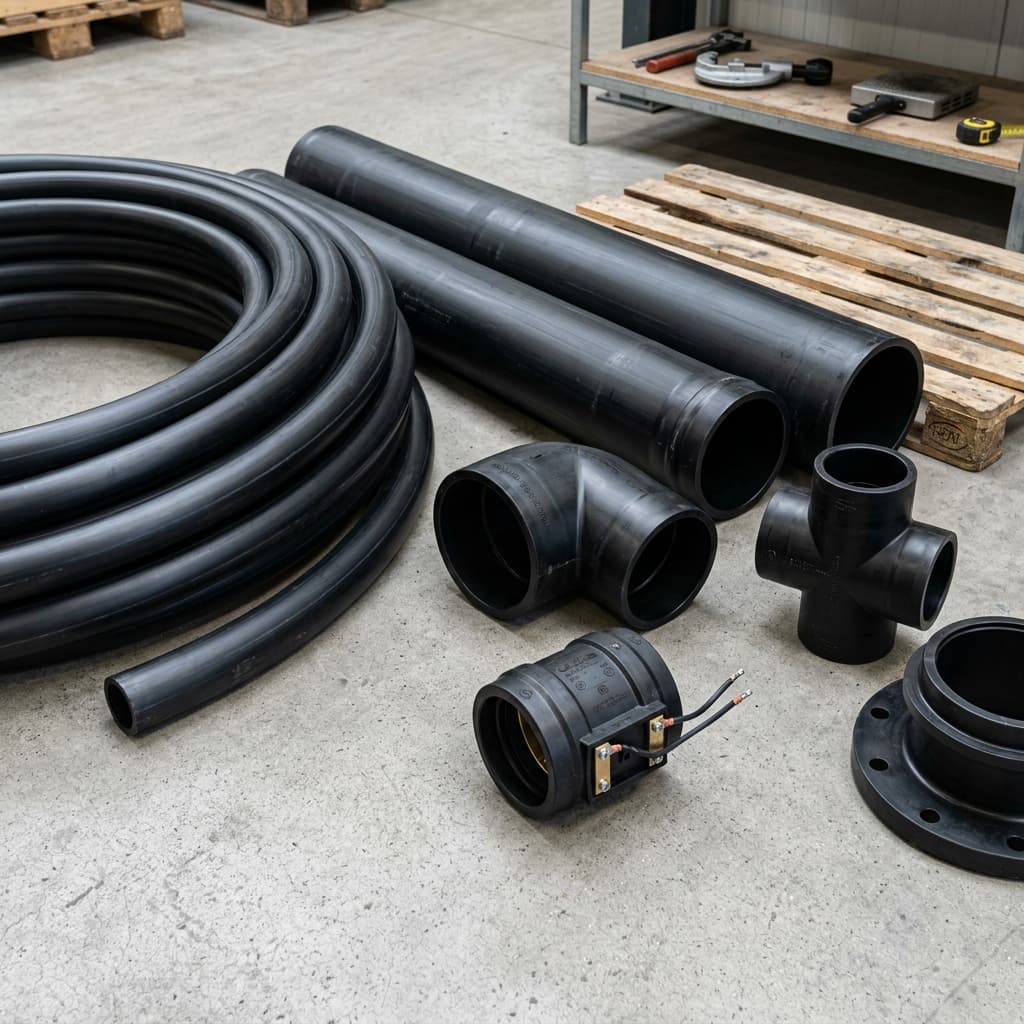

HDPE Pipe & Fittings

TEC INDUSTRIES HDPE Pipes are manufactured from PE 100 high-density polyethylene, offering superior performance for underground water supply, irrigation, sewage, industrial fluid transport, and municipal infrastructure. Their flexibility, impact resistance, and 50-year design life make them the preferred choice for demanding installation environments across India.

Get a Quote WhatsApp Us

Technical Data

Specifications

Parameter	Value
Material	PE 100 (standard) · PE 80 (legacy applications on request)
Size Range	20 mm – 630 mm
Pressure Classes	PN6 / PN8 / PN10 / PN12.5 / PN16
SDR Range	SDR 41 (PN6) to SDR 11 (PN16)
Service Temperature	-40°C to +40°C (pressure service); higher non-pressure
Design Life	50 years (PE 100 at 20°C, rated pressure)
Standard Length	6 m and 12 m bars; coils available 20–110 mm
Colours	Black (standard) · Black with blue stripes (potable water) · Black with yellow stripes (gas)
Standards Compliance	IS 4984 · ISO 4427 · EN 12201
Joint Methods	Butt fusion · electrofusion · compression fittings · flanged
Certification	Manufactured to IS 4984 / ISO 4427 / EN 12201 specifications. BIS certification under process.

Why Choose This Product

Key Features

PE 100 material provides 50+ year design life underground at rated pressure
Excellent flexibility — bends without cracking, ideal for trenchless and HDD installation
Resistant to all soil conditions including acidic, saline, and rocky ground
Leak-free butt fusion and electrofusion joints — no gaskets or mechanical joints required
Low friction coefficient (smooth bore) reduces pumping energy costs
UV stabilised black grade for surface and above-ground installations
Impact resistant even at sub-zero temperatures (-40°C)
Suitable for non-potable, potable water, industrial effluent, and low-pressure gas

Where It's Used

Application Areas

Underground Water Supply

Municipal water mains, distribution networks, and service connections.

Drip & Sprinkler Irrigation

Main supply lines for large-scale agricultural drip and sprinkler irrigation.

Sewage & Drainage

Pressure sewer and gravity drainage in urban and rural infrastructure.

Mining & Industrial

Slurry transport, mine dewatering, and process fluid piping.

Gas Distribution

Low-pressure gas networks with yellow-stripe specification.

Trenchless Installation

Horizontal directional drilling (HDD) and pipe bursting applications.
